TennisKit Paddle Pro 15 Red | Green
TennisKit Paddle Pro 15 Red | Green product includes:
1. Artificial grass roll “A”, size 3,72×24,25m, amount 1 roll
2. Artificial grass roll “B”, size 3,72×24,25m, amount 1 roll
3. Artificial grass roll “C”, size 3,72×24,25m, amount 1 roll
4. Artificial grass roll “D”, size 3,72×18,50m, amount 2 rolls
5. Artificial grass roll “E”, size 3,72×18,50m, amount 2 rolls
6. Artificial grass roll “G”, size 3,72×24,25m, amount 2 rolls Total: 726,33m2
7. Can of clue 15,0kg, amount 5 cans | Total: 75kg
8. Tape roll, length 1oom, amount 3 rolls | Total: 300m
- Rolls & Line Layout
- Description
- Artificial Grass Technical Specification
- ITF Certificate
Description
TennisKit Paddle Pro 15 Red | Green as a set of materials consists of nine (9) rolls of artificial grass, five (5) cans of glue, and three (3) rolls of seaming tape. For simplifying the installation process, the majority of play lines are integrated into the material already in the factory. As a result, manual cutting during the installation is necessary only for the service line and center service line.

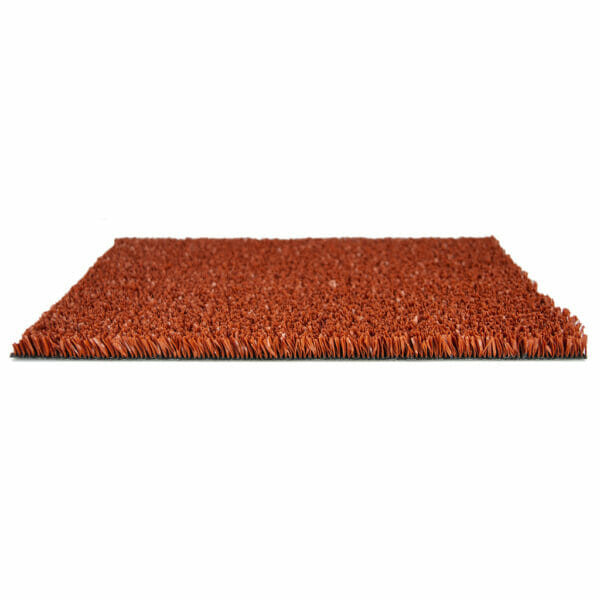

Player-friendly Paddle Pro 15 Red | Green synthetic grass surface consists of 15 mm monofilaments yarn. The sand is filled between the fibers of the artificial grass for getting the superb game experience. TennisKit Paddle Pro 15 Red | Green has an overall court pace rating 3 (medium) given by ITF.
TennisKit Paddle Pro 15 Red | Green as an artificial grass tennis court has excellent playing characteristics. Therefore, TennisKit24 recommends this surface for players on different skill levels.
TennisKit Paddle Pro product family offers 2 possible color combinations for the tennis court: green-green and red-green. Consequently, the court surface can be installed in a single color or with contrasting colors to the play and run-off area.
Delivery information HERE
- All-weather surface for all year round usage
- 15 mm monofilament yarn
- Low maintenance
- Integrated play lines for consistent bounce even on the lines
- No sprinklers or watering
- ITF Classified Court Pace 3 (medium)
| PRODUCT | |
| NAME OF PRODUCT | TennisKit Paddle Pro 15 |
| SPORTS APPLICATION | Tennis |
| PRODUCTION | |
| PRODUCER | Edel Grass B.V. | Genemuiden | Netherlands |
| PRODUCTION PROCESS | Tufted, cut pile |
| PILE | |
| PILE MATERIAL | Thiolon TS XT polyethylene yarn, fibrillated, environment-friendly, UV-stabilised |
| YARN D-TEX | 5000/1 Dtex |
| CROSS-SECTION OF TAPES | Width approx. 5mm ±5%, thickness approx. 110µm ±5% |
| COLOR | OLIVE green | red clay | |
| LINE COLOR | White |
| UV STABILITY | DIN 53387 meets 6000 hours W.O.M. test |
| LIGHT FASTNESS | >7 on blue scale 1-8 |
| COLOR FASTNESS | >4 on grey scale 1-5 |
| BACKING | |
| PRIMARY BACKING | Thiobac polypropylene, UV-stabilised, approx. ± 150g/m2 |
| COATING | Carboxylated (SBR) latex, approx. ±1216g/m2 |
| WATER PERMEABILITY | 60liter/min/m2 with 4mm perforated holes |
| PRODUCT DETAILS | |
| PILE HEIGHT | Approx. 15mm ±10% |
| TOTAL CONSTRUCTION HEIGHT | Approx. 17mm ±10% |
| PILE WEIGHT | Approx. 1320g/m2 ±10% |
| TOTAL WEIGHT | Approx. 2686g/m2 ±10% |
| GAUGE | 3/16” |
| STITCH PER LINEAR METER | 350 ±10% |
| STITCH PER SQUARE METER | Approx. 73500 ±10% |
| INFILL | |
| STABILIZING INFILL | Silica-sand, gradation 0,25-0,7mm, min 80% round shape |
| INFILL AMOUNT | Approx.17kg/m2 |
| INSTALLATION | |
| INSTALLATION METHOD | Loose laid on bound or unbound sub-base |
| ROLL WIDTH | 3.72lm ( ±2cm) TennisKit system according to the installation plan |
| ROLL LENGTH | According to the installation plan |
| JOINTS & SEAMS | The seams in the turf are joined with a reinforcing tape glued to the back of the turf |
| LINE MARKING | Tufted-in or to be laid in during installation |
| APPROVALS | ITF (01/02-18-L-ISA-201-A) |
The above data are subject to modifications based on technical improvements or company-internal developments. All data are higher than the DIN standards. All figures are average values and can vary slightly.
