Tennis Court Fence Set 3D-5mm Elite
Tennis Court Fence Set 3D-5mm Elite – Fence Wing Panel View with Post U-Brackets

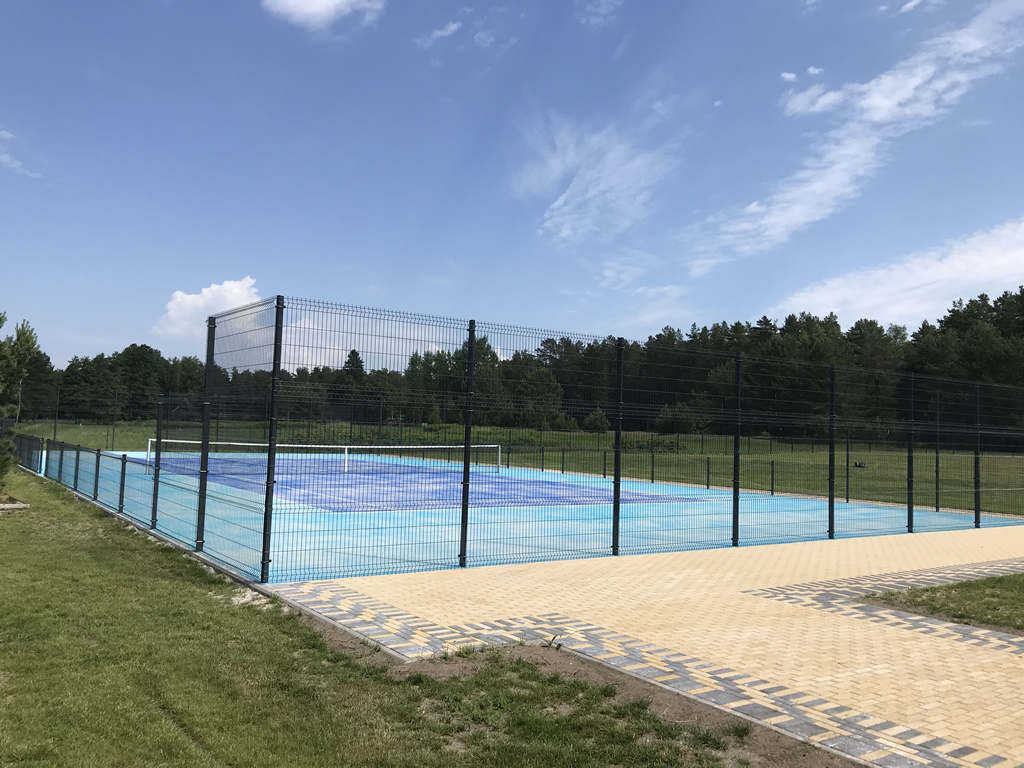

Tennis Court Fence Set 3D-5mm Elite – View from Behind the Court

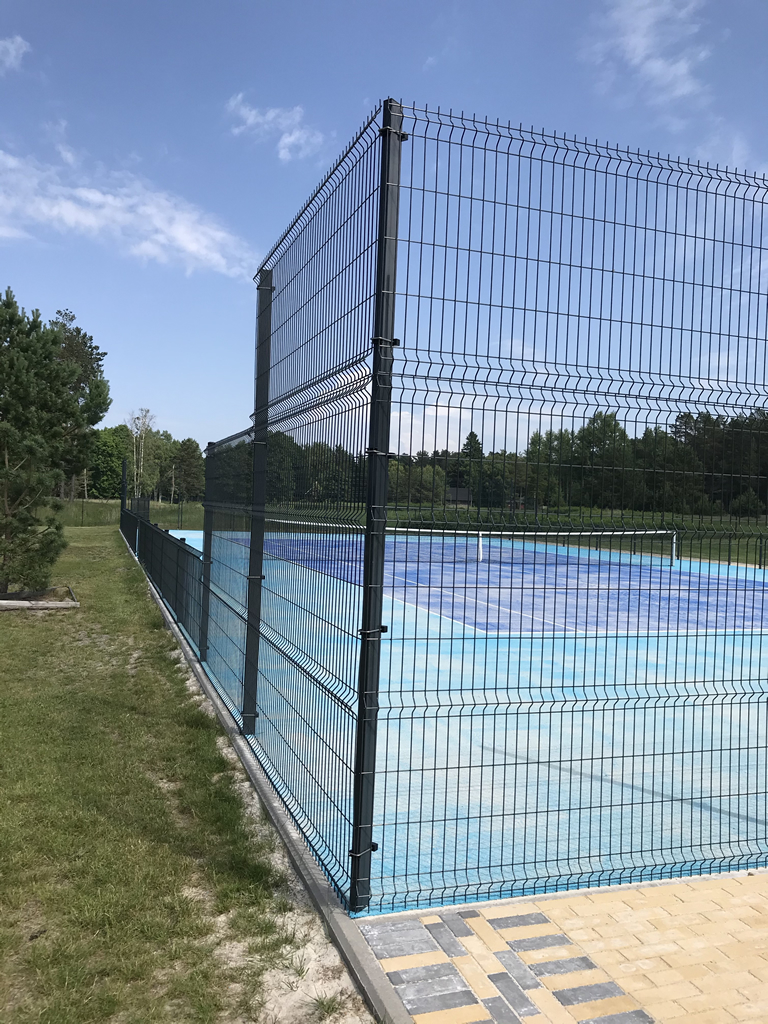

Tennis Court Fence Set 3D-5mm Elite – Corner View of the Court

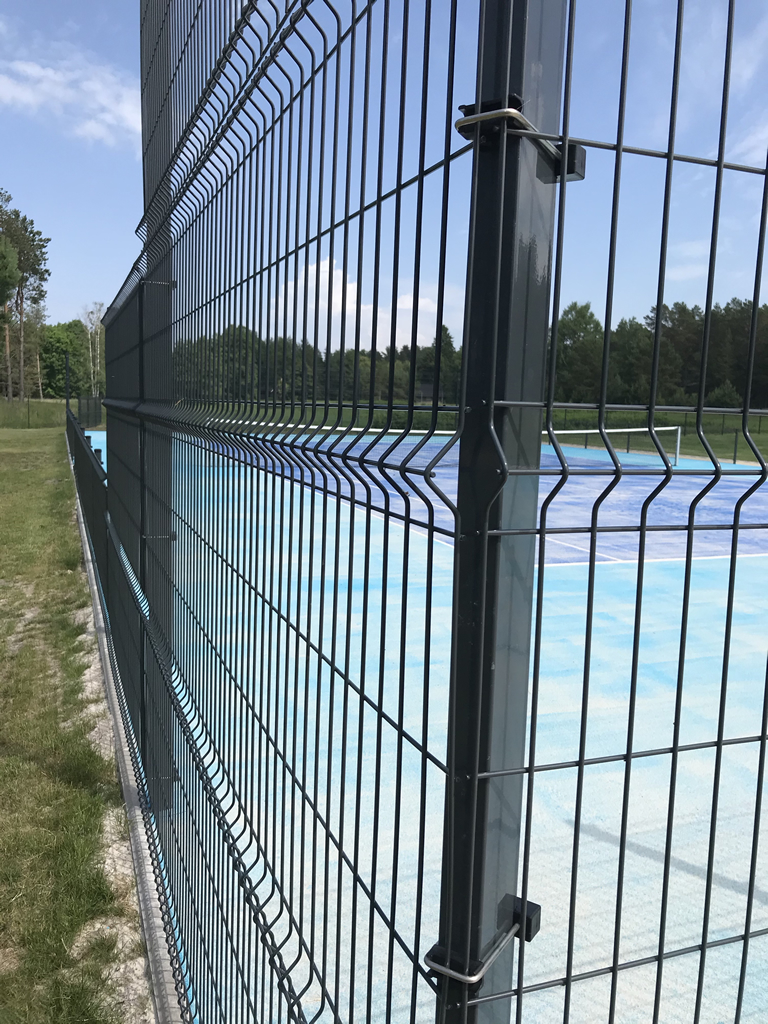

Tennis Court Fence Set 3D-5mm Elite – Corner Post View with Post U-Brackets

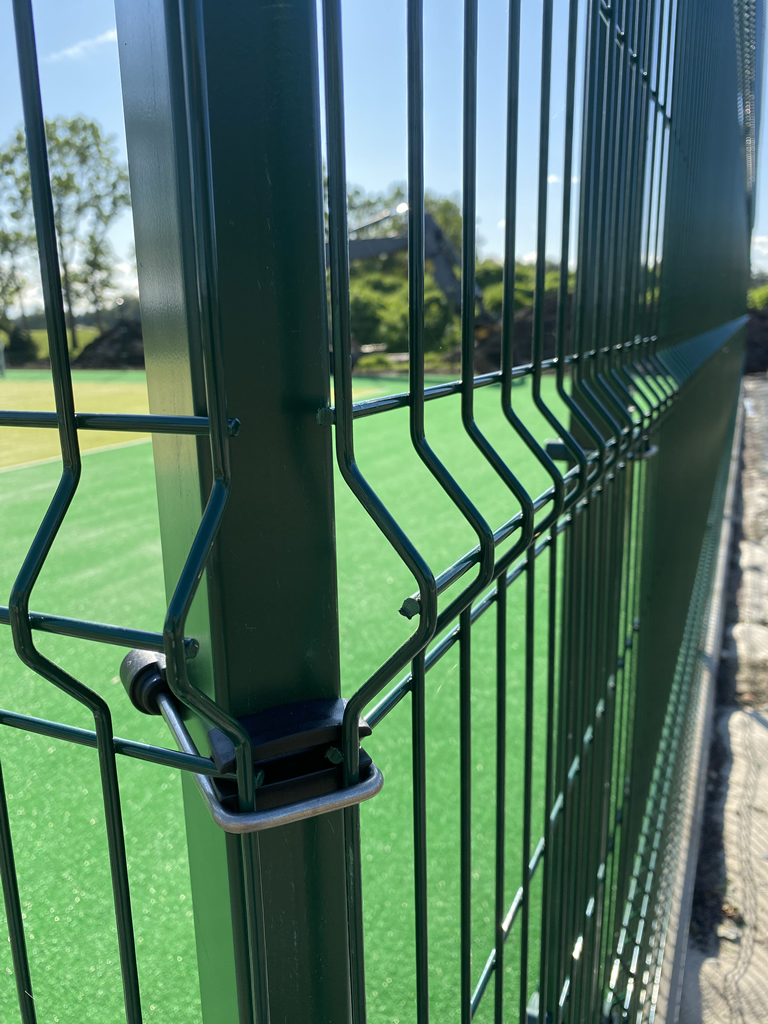

Tennis Court Fence Set 3D-5mm Elite – Corner Post Close Up View with Post U-Bracket

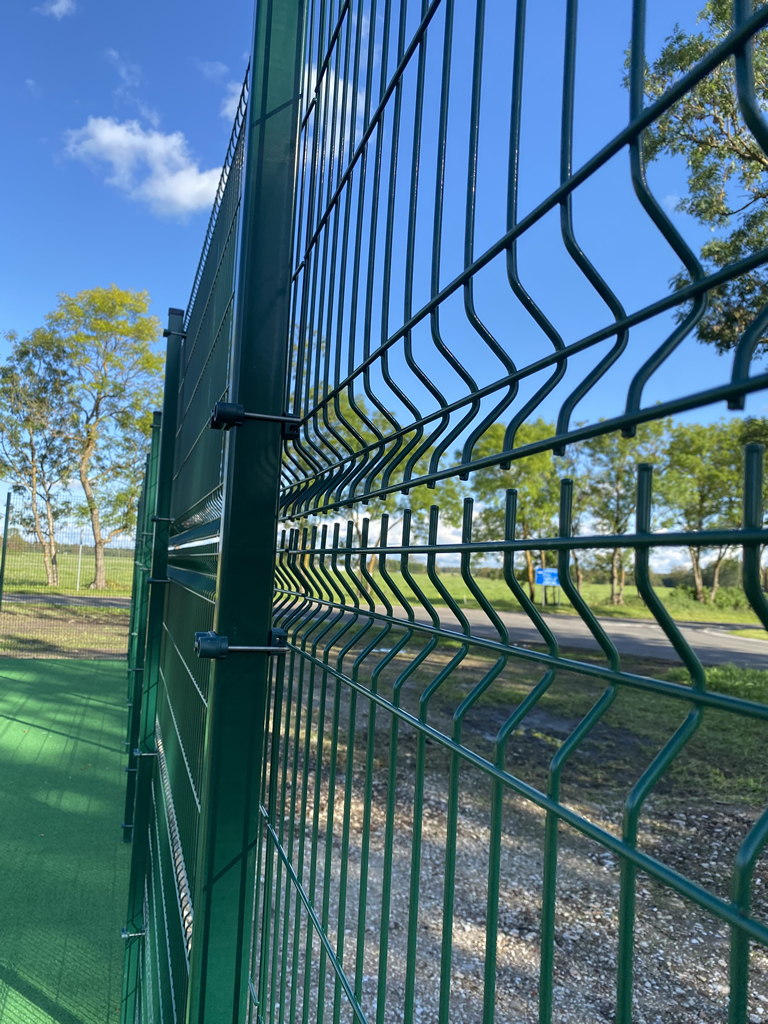

Tennis Court Fence Set 3D-5mm Elite – Baseline Side Panel View with Post U-Brackets

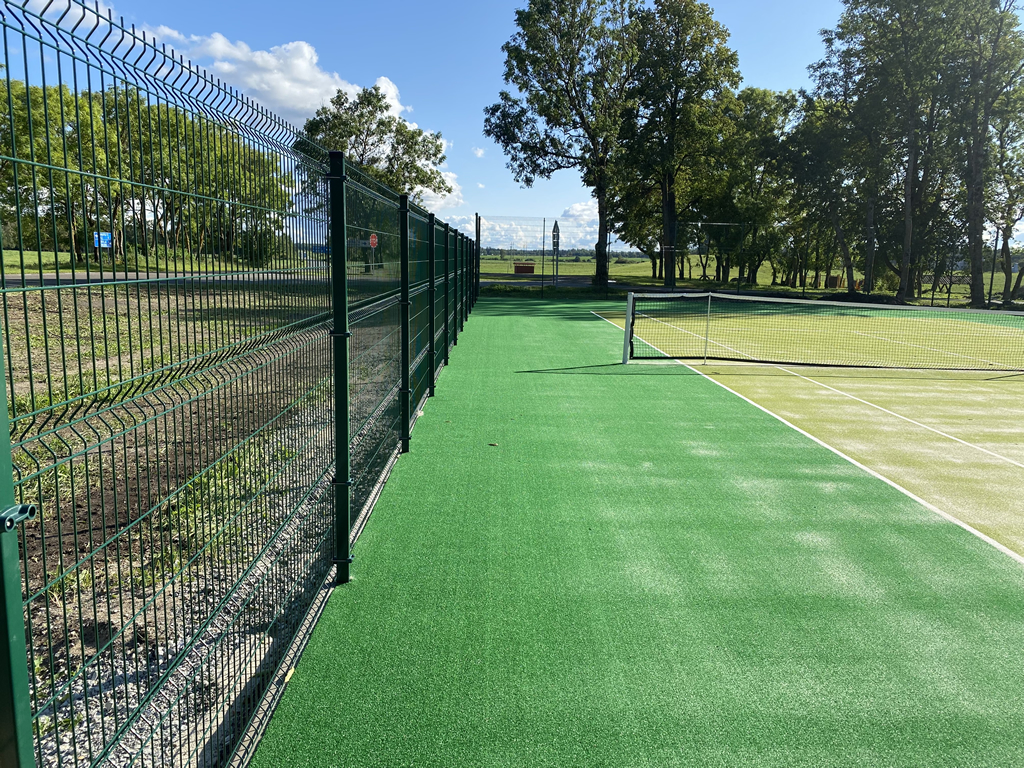

Tennis Court Fence Set 3D-5mm Elite – Fence Wing Side View

FenceKit 3D-5mm Elite

Tennis court fence set FenceKit 3D-5mm Elite (with powder coating) product includes:

  • Fence 3D panel, mesh wire diameters 5mm, mesh size 50x200mm, panel size 2030x2500mm hot-zinc+RAL (24 pcs)
  • Fence 3D panel, mesh wire diameters 5mm, mesh size 50x200mm, panel size 1030x2500mm hot-zinc+RAL (40 pcs)
  • Fence post, size 80x40x2mm, height 3800mm, hot-zinc+RAL (22 pcs)
  • Fence post, size 60x40x1,5mm, height 2500mm, hot-zinc+RAL (4 pcs)
  • Fence post, size 60x40x1,5mm, height 1700mm, hot-zinc+RAL (16 pcs)
  • Fence post plastic cover cap (42 pcs)
  • Fence wing gate with posts, size H1000xW1270mm, frame 60x40x2mm, gate posts 80x40mm, lock Locinox, hot-zinc+RAL (2 pcs)
  • U-bracket for 80x40mm fence posts, stainless steel (150 pcs)
  • U-bracket for 60x40mm fence posts, stainless steel (50 pcs)
Color
  • RAL 6005
  • RAL 7016
  • RAL 8017
  • RAL 9005
Finish

Hot-Zinc and Powder Coating

Panel Profile

3D

Size

Standard 18,27 x 36,57 m

Weight

1800 kg

Description

FenceKit 3D-5mm Elite system is tennis court fence set solution created by TennisKit24 for outdoor tennis courts. It has higher end parts to avoid the balls falling out of the court. The fence is made out of heavy welded mesh panels with double horizontal wires.

This tennis court fencing system provides extreme rigidity and is fast to install. This system has long lifespan and aesthetically good look. All details have hot-zinc plus powder coating finish.

Powder coating RAL colors: 6005 (Green), 7016 (Grey), 8017 (Brown) or 9005 (Black).

During the installation, please follow TennisKit24 guidelines “How to Install Tennis Court Fencing“.

Lastly, in order to choose the right material and most suitable fence for your court read more from our BLOG.

Tennis Court Fence Set 3D Drawing
Tennis Court Fence Set 3D Drawing
